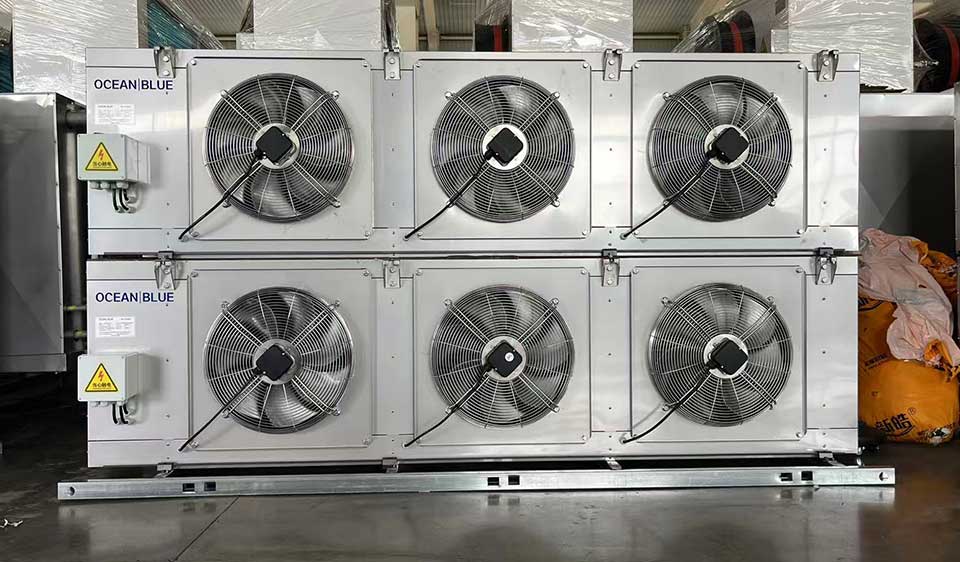

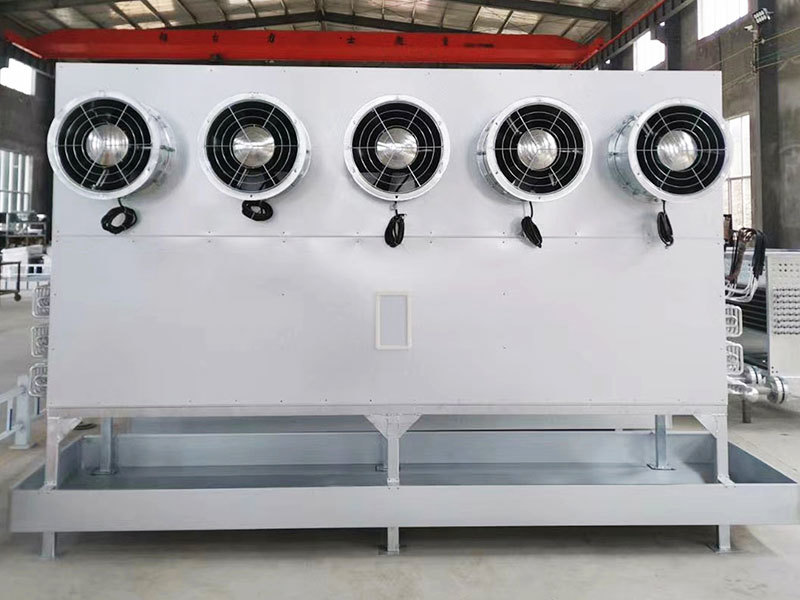

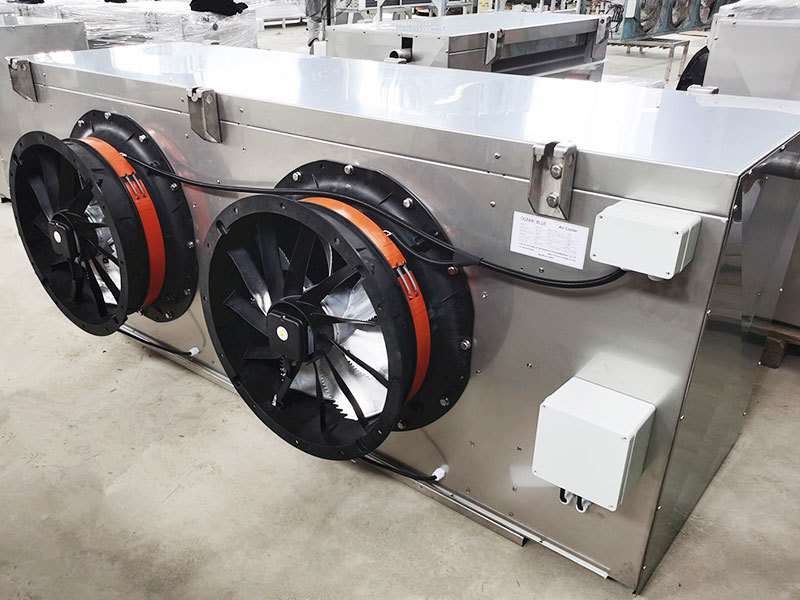

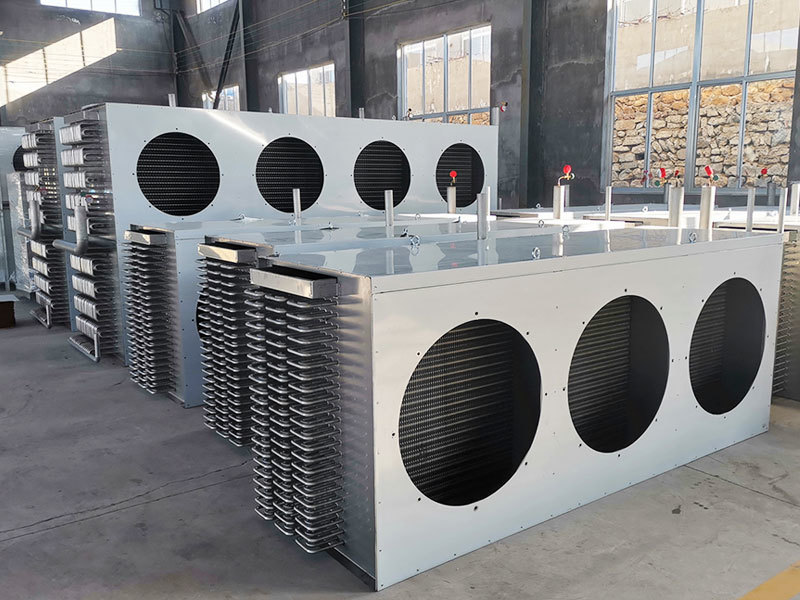

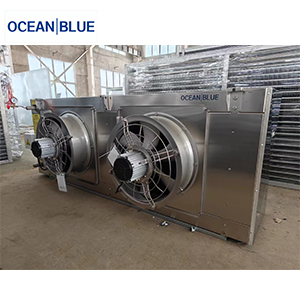

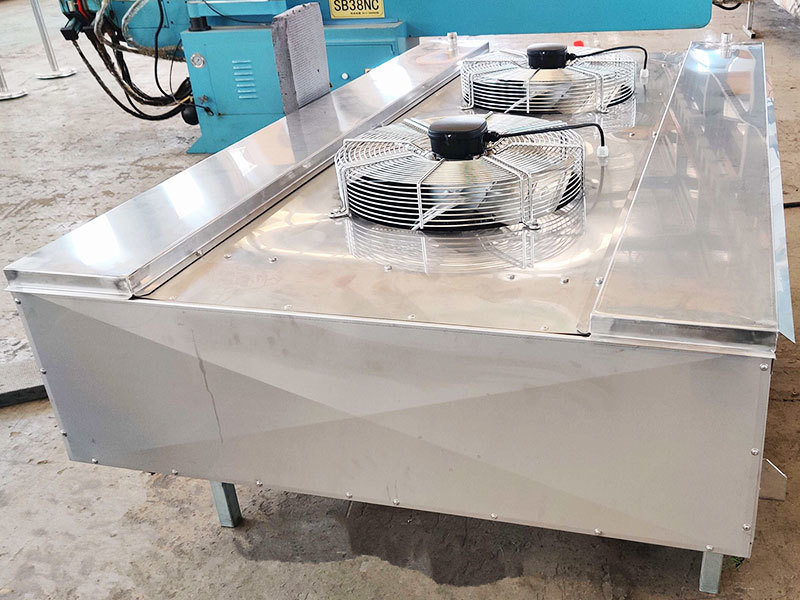

Air cooler/ Evaporator/ Unit cooler/ Heat exchanger
Air cooler is the refrigeration equipment by forcing air circulation through axial flow fan to greatly enhance heat convection effect outside the evaporator tube. The air cooler provided by our company can be widely used for various food quick-freezers, freezing storage, cold storage, cold drying storage, workshop air-conditioners and all kinds of food mono-instant freezers.
Application:
1.The operational areas are super markets ,petrol stations ,butcher’s shops ,slaughter houses ,groceries reloading points ,cold storages and much more.
2.The system provides here optimal protection of goods-guaranteed through high safety of temperature.
3.Air cooler are important components and guarantors for an efficient operation.
Features:
Apply forFreon , Ammonia, or other refrigerating medium
High quality axial flow fans and mesh fans-Long lifetime
High heat-transfer efficiency

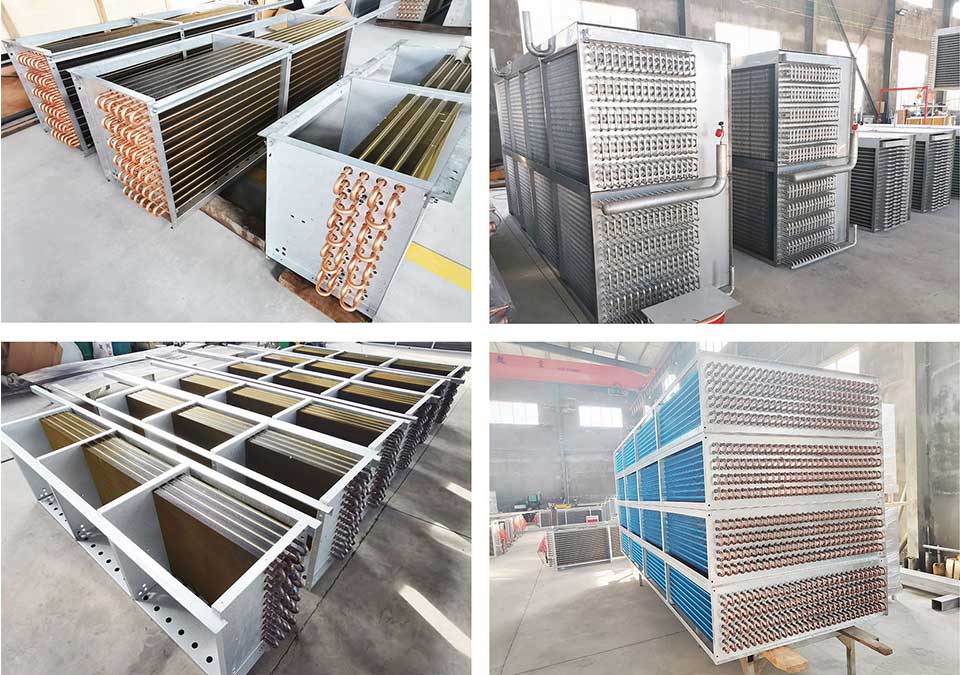

Coil
Tube material: Stainless Steel tube, Copper tube, Aluminum tube
Fin material: aluminium, epoxy coated aluminium, AlMg3
Fin spacing: 4, 7, 10, 12 and dual 16:8 mm
Casing
Galvanised sheet, powder coated RAL, Stainless steel
Drip Tray
stainless steel tray, or galvanised sheet, powder coated RAL 9010 tray
Drip tray can be folded down as well as detached from unit for inspection and cleaning.
Fans
Low noise, maintenance free fan-motors, with protection class F and IP 54.
Standard motors are suitable for temperatures from – 40 °C to + 45 °C.
Defrosting
– defrosting by water spray.
– electrical defrosting.
– hot gas defrosting in coil and drip tray.
