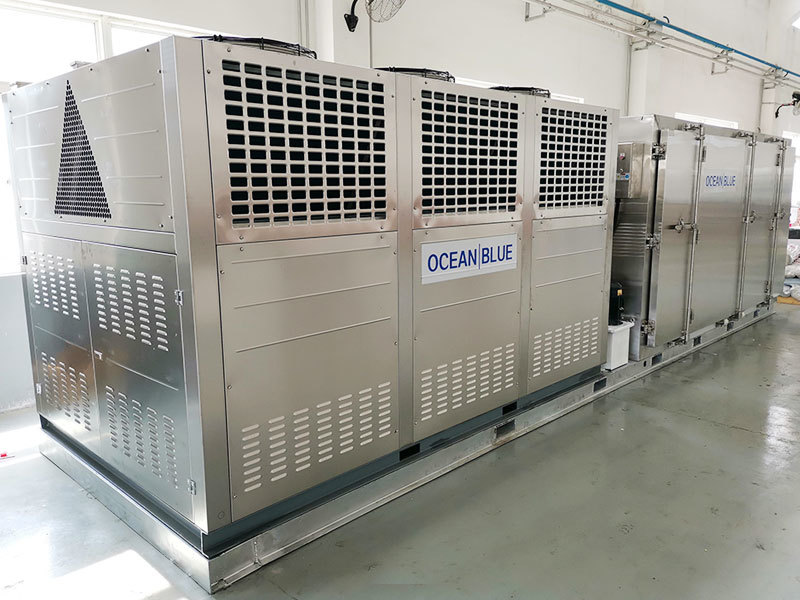

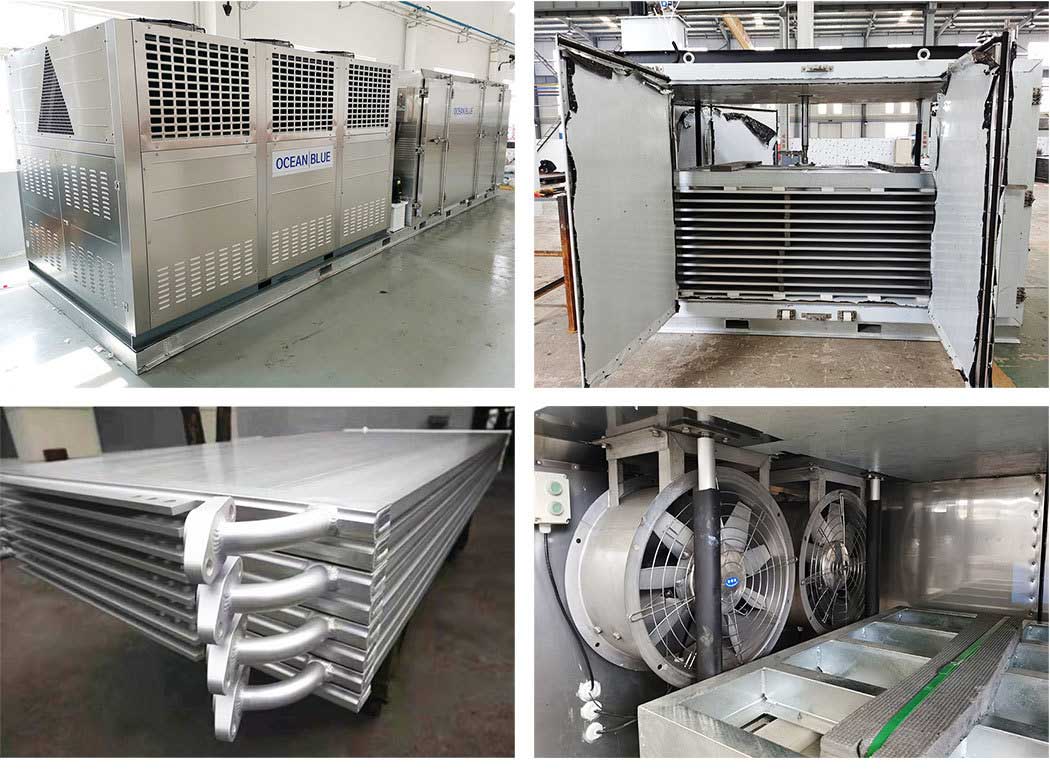

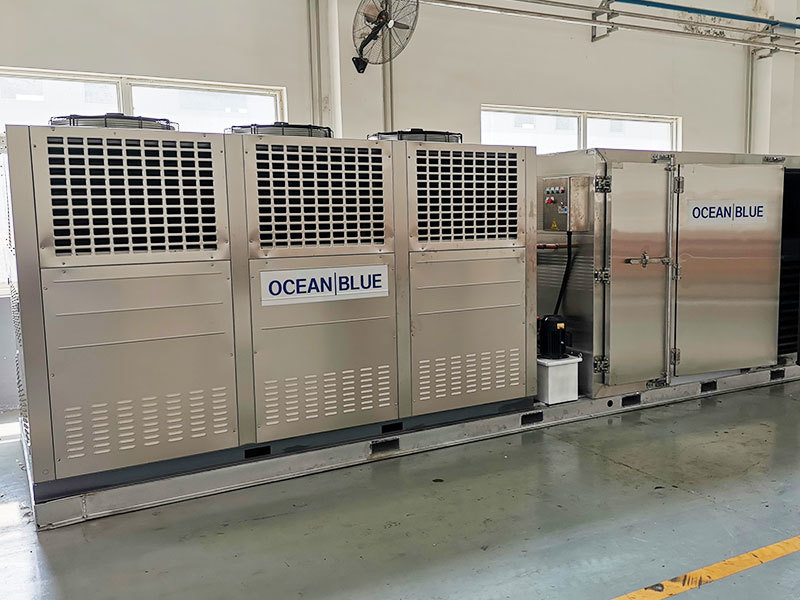

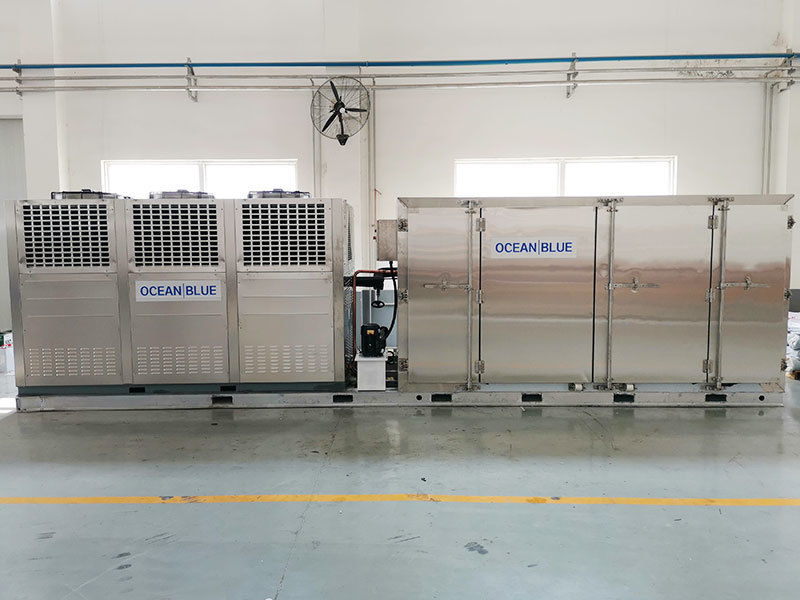

Contact plate freezer adopts double-faced contact quick freezing way. it is the method which can load food in the metal mold, with the top and bottom metal plate which use as a evaporator clamping upon it can passes over the refrigeration working substance directly to transmit cold to product. Because the conductivity of metal is ten times higher than air, so it can make product’s quick-freezing.
Features:
1.Short freezing time and high freezing quality, it’s the best choice for massive food quick-freezing.
2.High heat exchange efficiency, quick-freezing speed, the energy conservation effect is prominent.
3.Ensure food obtains the high quality as well as lower the cost to minimum.
4.The unit is high flexibility and vast range of application.
Main componentsconfiguration
| NO. | Item | Specification |
| 1 | Insulationpanel | Thickness of top plate and bottom plate are 150mm, inside and outside are 0.5mm, stainless steel plate. Pre-embedded steelframe no deformation, beautiful and durable. |
| Thickness of side plate is 150mm, inside is 0.5mm stainless steel plate and outside is 0.8mm stainless steel drawn plate. Pre-embedded steel frame no deformation, beautiful anddurable. |
||
| Cabinet door t=60mm, inner is 0.5mm SUS304 stainless steel plate, outer is 0.8mm stainless steel drawn plate, pre-embedded frame, lock is made of stainless steel, beautiful, durable, goodsealing and easy to open. | ||

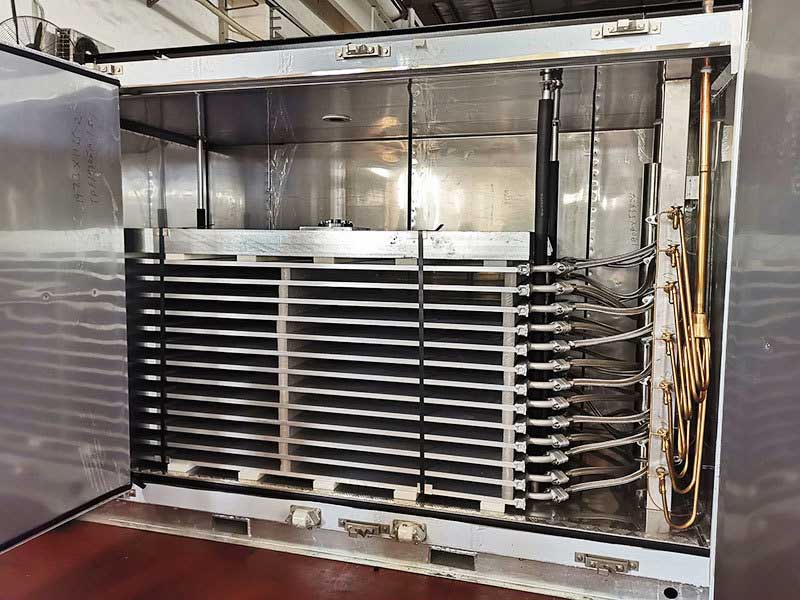

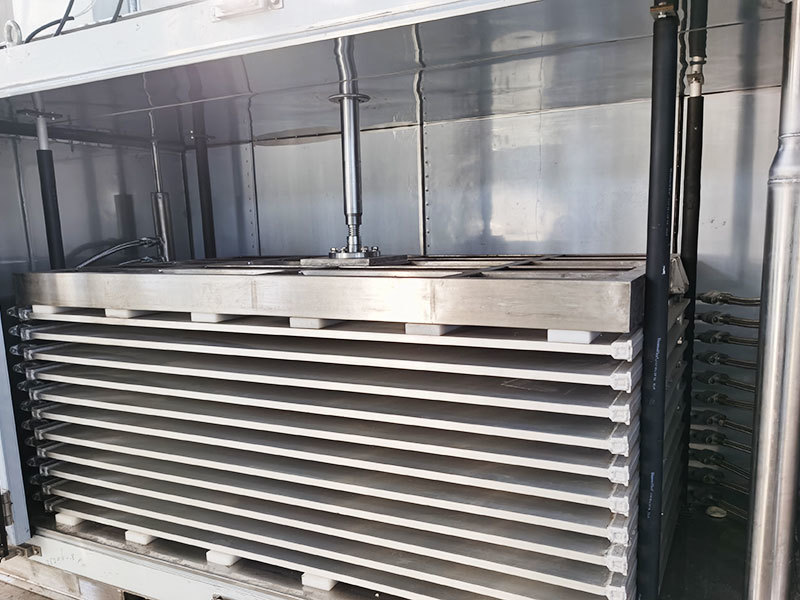

| 2 | Freezing plate | Special profiled aluminum alloy plate(Brand No.6063-T5), less joints, smoothly; after welding surface integral anodic oxidation treatment, good thermal conductivity, beautiful and corrosionresistance. ‘L’-type baffle can effective protect the freezing plate. |
| 3 | Frame | High tight material, hot dip zinc or painting the rust resistance, no deformation, high strength and corrosion resistance. |
| 4 | Hydraulic station | The hydraulic system oil pump designed and manufactured by professional hydraulic manufacturers is a high-precision vane pump. The oil rod is ground and the surface of the piston rod is chrome-plated. The seal is mostly made of V-ring seal. The integrated block is used to automatically adjust the food expansion during food freezing pressure; hydraulic cylinder, hydraulic station surface paint, beautiful, long life; hydraulic cylinder and hydraulic station connected with high-pressure seamless steel pipe; The hydraulic system is connected with the spherical flange at the joint of the traction frame, which effectivelyreduces the maintenance times. |
| 5 | Supply-liquid and gas-return | Main pipe is made of stainless steel, metal hose and flangeconnect with the frozen plate and supply-return pipes, good seal, beautiful and durable. |
| 6 | Electric control system | Stainless steel shell, waterproof, and rust resistance. The electric control system can control well the hydraulic system, show the temperature of evaporator when working, and it can alarm timelywhen pressure is too high or have a fault. |
| 7 |
Standard parts |
Stainless steel bolts and nuts, rivets, self-tapping screws |
| 8 |
Others |
Up and down gaskets adopt the high molecular polyethylene, which is reasonable in design, easy to clean and low temperature resistance; the flat plate fixed casing is made of stainless steeland aluminum alloy, which is beautiful and durable. |
