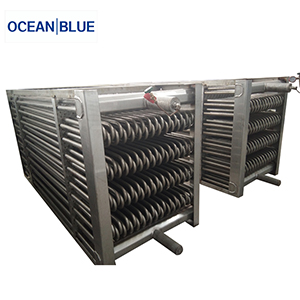

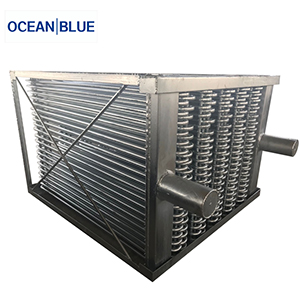

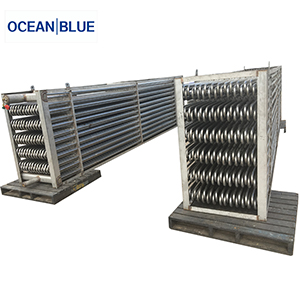

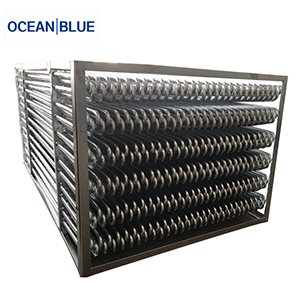

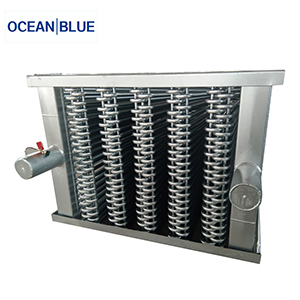

Stainless Steel Evaporating Condenser Coil

The coil section rejects heat through the fresh air evaporating, on the other side is through the sensible heat effect of pre-cooled circulating spray water. Reducing the coil’s evaporating cooling effect is helpful to reduce the possibility on the coils surface scaling.

Place of Origin: China (Mainland)
Brand: OCEAN|BLUE
Application: Refrigeration Parts
Tube material: Hot Dip galvanized or Stainless Steel
Refrigerant: Ammonia or Freon
Tube Shape: Oval
Tube size: 21.6*31.7 mm
Using: Heat exchange
Consult Contact

condenser coil for evaporative condenser

1) The evaporative condenser is one of the most important parts of the whole refrigeration system.

2) The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle.

3) The evaporative condenser is widely applied to cold storage, ice-store, chemical industry, supermarket and etc.

stainless-steel-coil

Details

OCEANBLUE Evaporative condenser use Oval type heat exchange tube,size 31.7*21.6mm,compare the DN25mm round tube,same length the surface more 10% than Round tube.Also the water contact tube Oval type better than Round type.Can see the bellow pictures.

Product Details of coil

The cross profile decreased then the velocity of medium in the tube comes faster.

(1) Decrease inner diameter of heat exchange tube wiith more compact tube arrangement can increase 65% of the heat exchange area in the same volume .

(2) Special oval tube ensure a better contacting of water on the outer surface of tubes .also can make the form tighter ,less filling rate of liquid and less air flow resistance.



How to make the condenser coil?

How to make the condenser coil

Condenser coil Working

(1)The coil section rejects heat through the fresh air evaporating ,on the other side is through the sensible heat effect of pre-cooled circulating spray water .

(2)Reducing the coils’ evaporative cooling effect is helpful to reduce the possibility of the coils surface scaling

Packing & Shipping

packing&shipping
